LA400EVKS - LA400EV Single Arm Kit
Product description
The Linear Arm drive operates particularly quickly with a high pulling force for gate leaves weighing up to 250 kg. It is designed for single-leaf applications up to 5.5 meters wide per gate leaf.
It is very quiet and gentle on materials.
Easy installation, low standby consumption, and a large opening angle are further impressive features.
The drive is made particularly smart by the optional myQ technology.

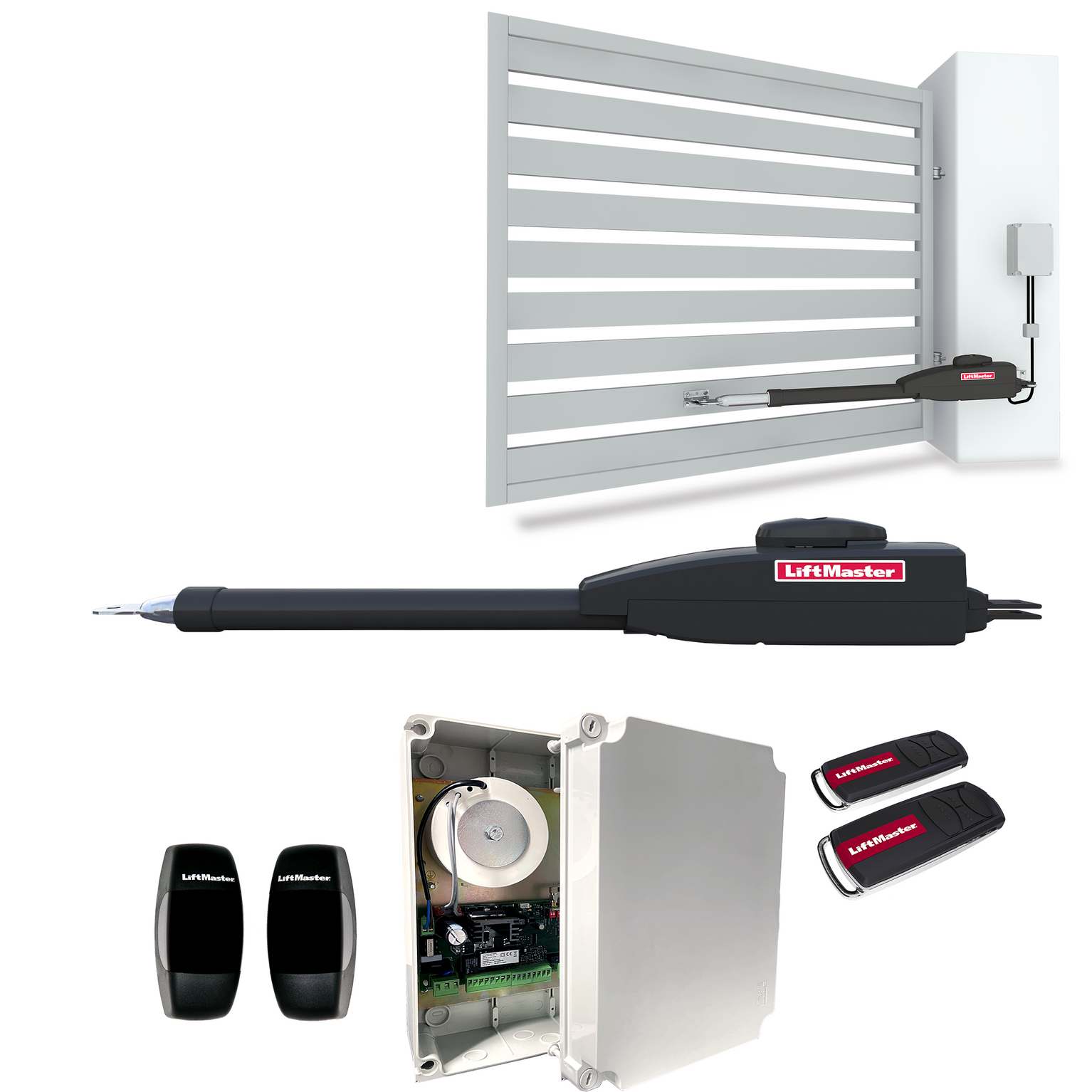

| This product contains: |
|---|
1 x LA400EV 24 V swing gate operator
|
Control Board (CB124) for 24 V leaf gate drives with e-box, transformer and integrated radio module
|
2 x Four-Channel remote transmitters (TX4EVF). Controls up to four Garage Door or Gate Operators.
|
Optional Accessories:
Specs
| Swing gate | 1 and 2 leaf standard |
| Gate leaf weight / width relation | 250 kg / 4m - 160 kg / 5 m - 140kg / 5,5 m |
| Torque / Pulling force | 250 daN |
| Max. opening angle | 125° |
| Motor Voltage | 24 V DC |
| Max. remotes controls | 180 |
| Max. nr of keypads | 4 |
Our Strengths
Stay connected with myQ
Smart radio technology
Strong and resistance design
Practical and modern
Clean and maintenance free product
Irreversible
Specifications
Support and Downloads
myQ -Keep control with one click
With the smart myQ technology, you can access your garage or gate quickly and easily at any time. Discover numerous features with the free myQ app, specially developed to enhance your convenience.
Practical: Smart control can be retrofitted at any time using the myQ Starter Kit (828EV).
- Full control from anywhere
- Check whether the garage or gate is open or closed
- Conveniently open or close the garage or gate using your smartphone
- Receive notifications whenever the gate status changes
