Garage Door Opener for Doors up to 150kg

Garage Door Opener for Doors up to 150kg

LM100EVFA

Product description

Explore the new model LM100EVX today.

Upgrade your garage door with this powerful, whisper-quiet opener that comes equipped with two multi-frequency transmitters and a built-in LED lighting system. What does reliability mean to you? Our Garage Door Opener defines it. Remotely control and monitor your garage with your smartphone, using the myQ app technology, using the myQ gateway (828EV), sold separately as an optional accessory.

1000N operator capable of managing up to 150 kilograms in garage door weight, with maximum dimensions of 3.25 metres in height and 5.75 metres in width.

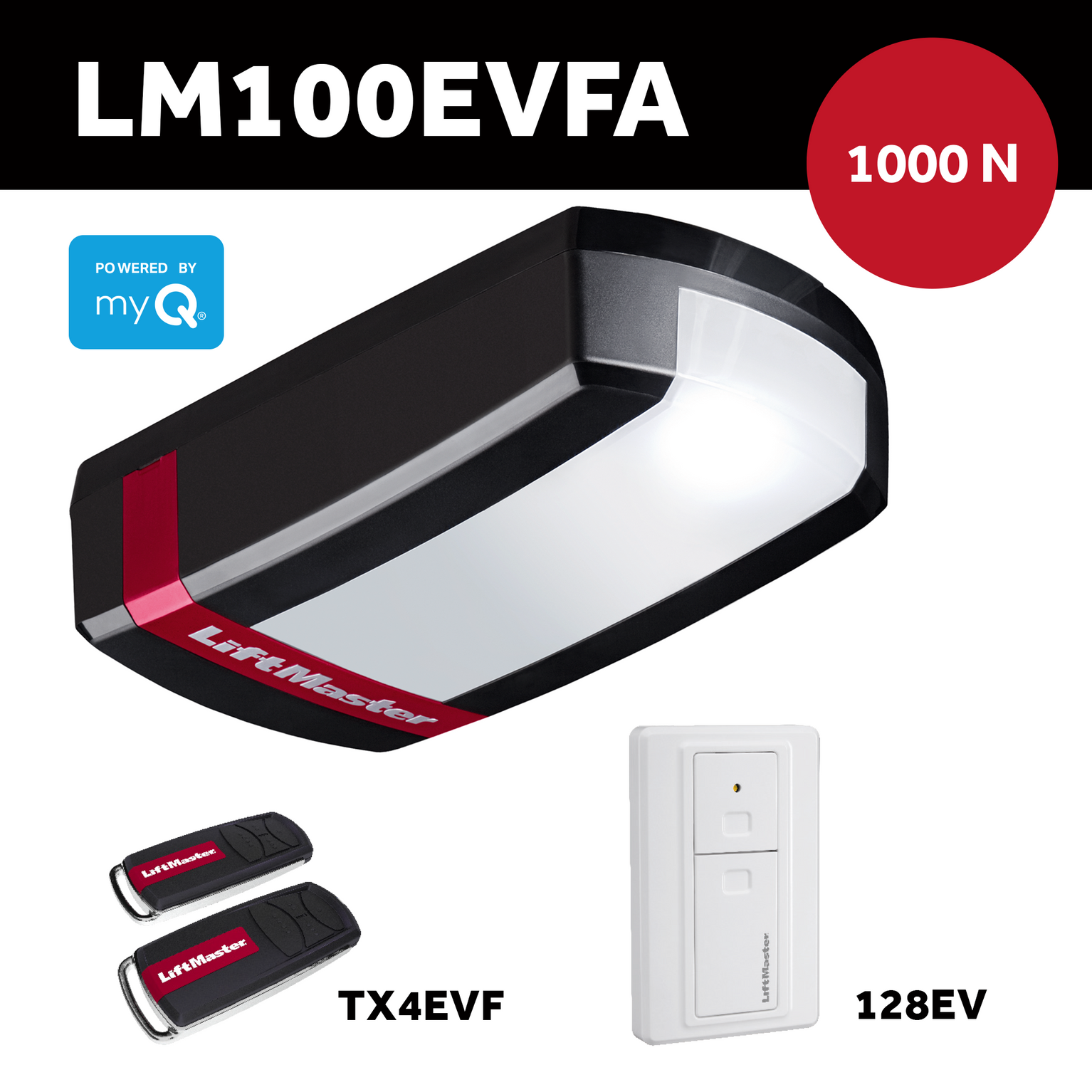

This product contains:
2 x Four-Channel remote transmitters (TX4EVF). Controls up to four Garage Door or Gate Operators. 2 x Four-Channel remote transmitters (TX4EVF). Controls up to four Garage Door or Gate Operators.
1 x two-channel wireless wall control (128EV-01) Controls up to two Garage Door or Gate Operators. 1 x two-channel wireless wall control (128EV-01) Controls up to two Garage Door or Gate Operators.

Optional Accessories:

  • TX4UNIF
  • FLA1-LED
  • 780EV
  • 828EV

Specs

Lifting force max. (N) 1000 N
Garage door weight 150 kg
Maximum speed (mm/sec) 200
Standby power consumption (Watt) max. 0,8 W
Warranty on motor (years) 8
Max. remotes controls 180
Our Strengths
Compatible with
Features
Specifications
Installation & support

Our Strengths

Stay connected with myQ

Smart radio technology

Strength in silence

High running speed

Up to 8 years motor warranty

Economic and environmentally friendly

Long-lasting LEDs

Quickly installed

Specifications

Lifting force max. (N)
1000 N
Garage door weight
150 kg
Maximum speed (mm/sec)
200
Standby power consumption (Watt)
max. 0,8 W
Warranty on motor (years)
8
myQ compatible (in connection with 828EV)
yes
Radio code
Security +2.0
Rotate the garage door opener head (130 mm space saving)
yes
Door-in-door connector (in connection with ADP-1EVO)
yes
Automatic force learning
yes
Max. remotes controls
180

Support and Downloads

Montageanleitung / Notice de montage /Montagehandleiding / Manual

With the smart myQ technology, you can access your garage or gate quickly and easily at any time. Discover numerous features with the free myQ app, specially developed to enhance your convenience.

Practical: Smart control can be retrofitted at any time using the myQ Starter Kit (828EV).

  • Full control from anywhere
  • Check whether the garage or gate is open or closed
  • Conveniently open or close the garage or gate using your smartphone
  • Receive notifications whenever the gate status changes

Compatible with
